Plinth Medical 516 - 4 Section Osteopath Manipulation Couch

Plinth Medical 516 - 4 Section Osteopath Manipulation Couch

SKU:516E/BS

Regular price £1,585.00 GBP
Regular price Sale price £1,585.00 GBP
Sale Sold out
Height Adjustment
Width
Upholstery Colour

VAT and delivery calculated at checkout

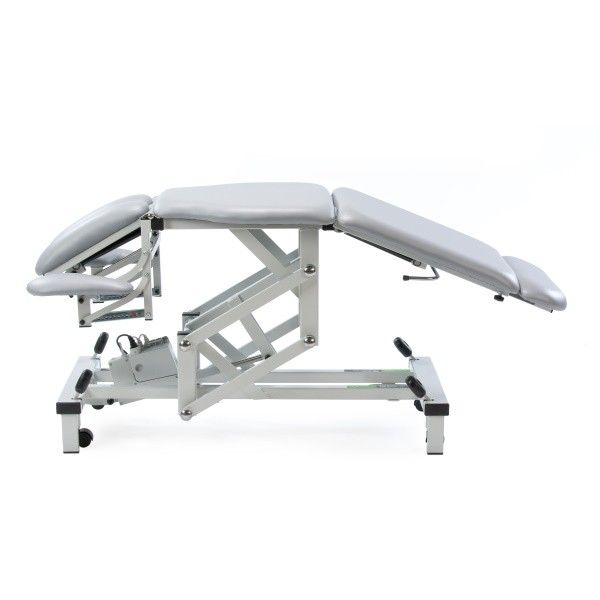

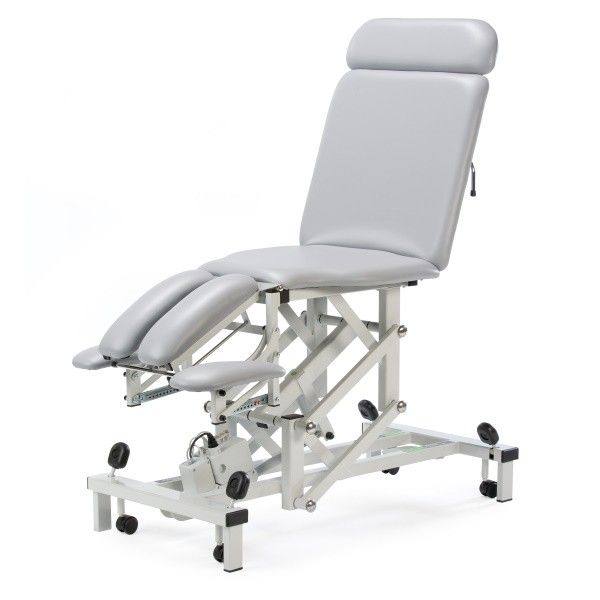

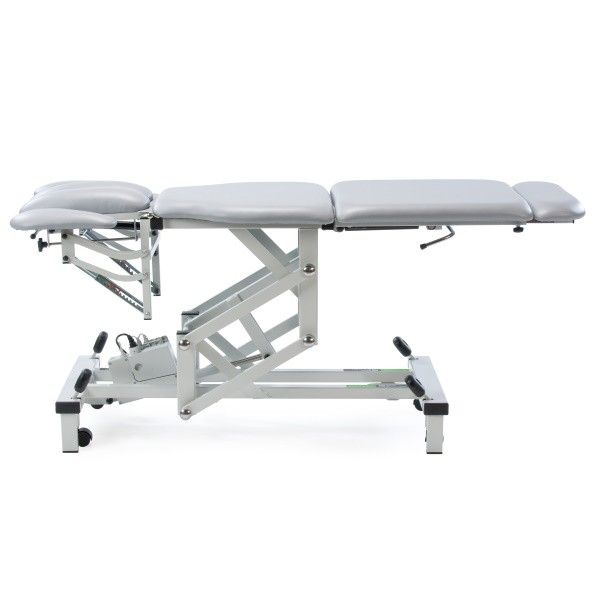

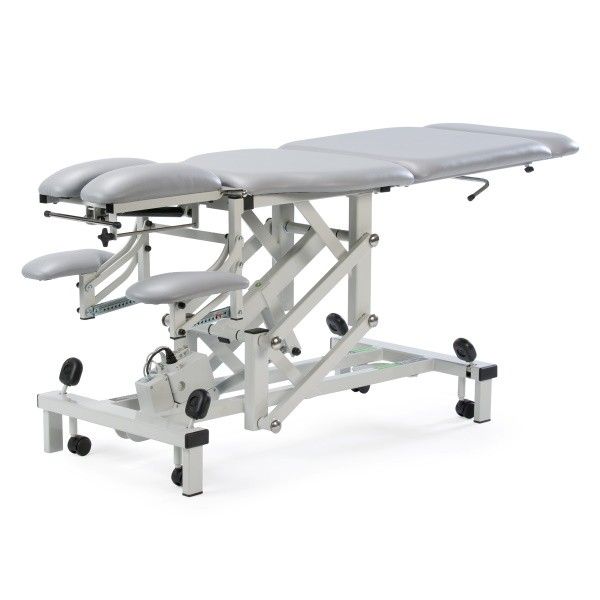

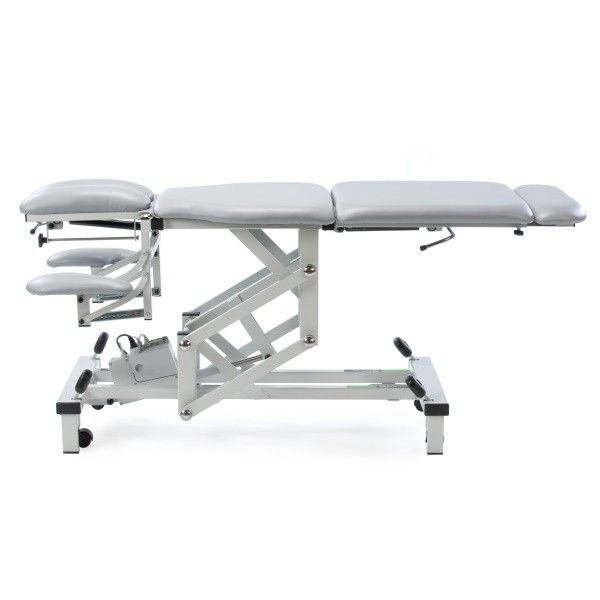

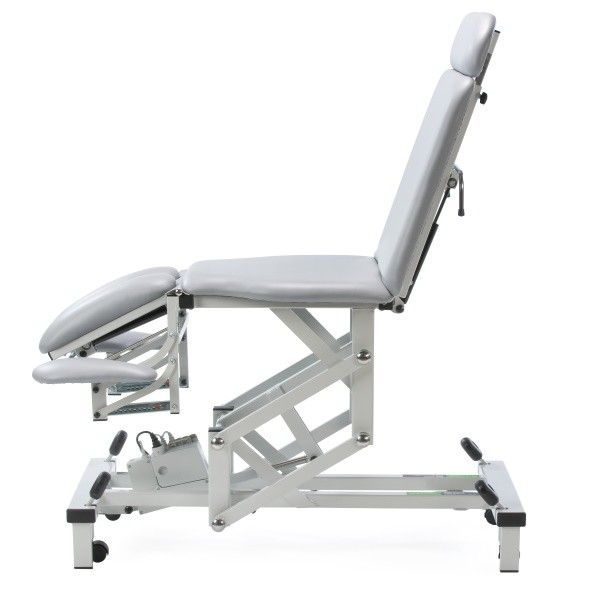

The Plinth Medical 4 Section osteopathy manipulation couch, model 516.

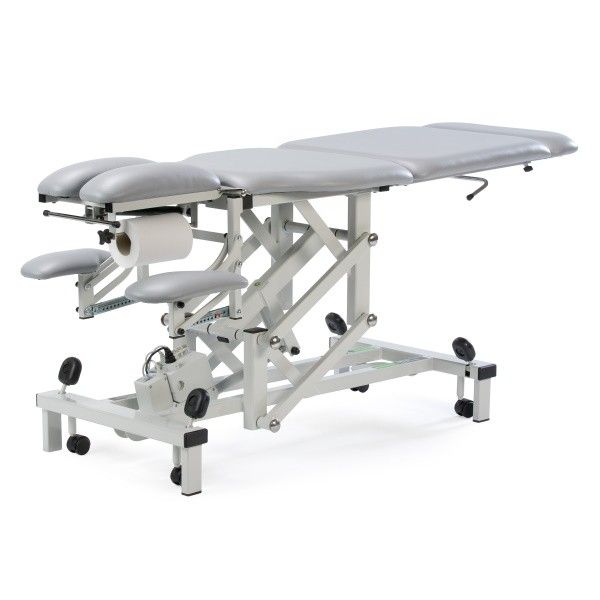

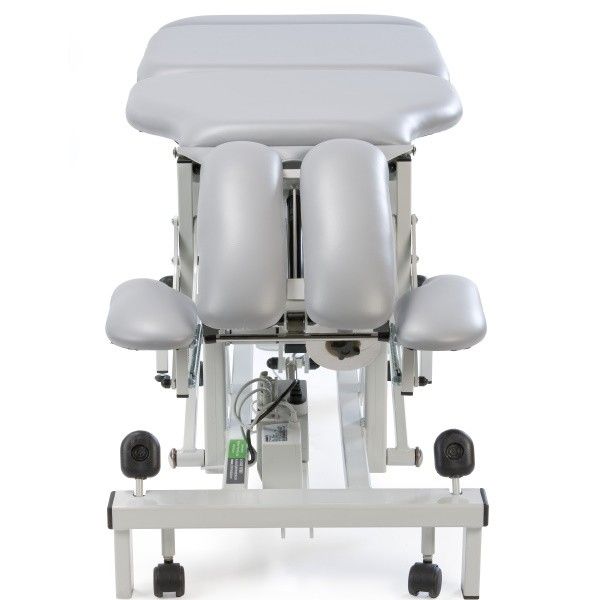

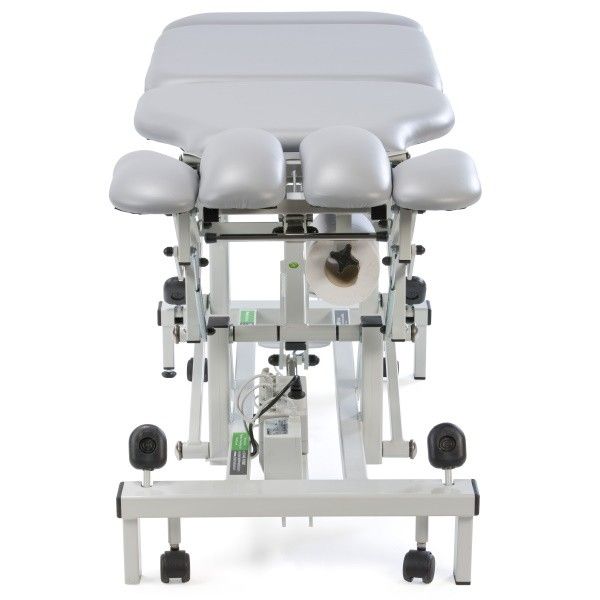

Designed for osteopathic techniques, this model features a two piece head section with full length breathing slot, an integrated paper roll holder and height adjustable armrests to reduce tension and provide additional comfort for the patient during head and neck procedures.

Both the head section and foot sections feature positive and negative positioning. The couch features a sliding foot extension as standard to cater for taller patients.

Suitable for constant and heavy usage, this couch will last for many years providing a trouble-free long life with minimal maintenance required.

Please contact us for carriage charges for multiple couches, or for delivery to the the Isle of Man, Isle of Wight, Channel Islands, Ireland, Scottish Highlands and Scottish Islands.

When placing an order, we will contact you to arrange delivery - please leave a telephone number and email address at checkout.

UK Manufactured, with a lifetime frame guarantee and 5 year parts guarantee.

STANDARD SPECIFICATION

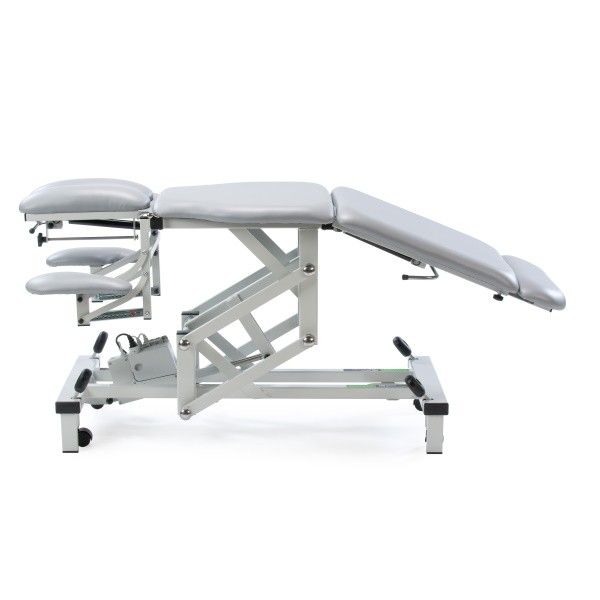

  • Armrests lower 28 cm for prone treatments
  • High-performance bearings on all pivot points
  • Very strong & rigid frame
  • Breathing hole and plug
  • Either electric or hydraulic height adjustment available
  • Able to lift up to 250kg from its lowest height
  • Head and Foot Section adjustment by gas strut mechanism
  • Head Section angle adjustable from -30º to +75º
  • Foot Section angle adjustable from -25º to +85º
  • Hoist clearance of 13cm (5”)
  • Adjustable foot for uneven floors
  • Fully washable/fire retardant vinyl available in a range of colours
  • Couch goes horizontal for patient recovery in emergency situations
  • Robust retractable castors for excellent mobility and safety
  • CE marked in conformity with MDD 93/42/EEC Annex IX Class 1
  • Electrical standard IEC601 part 1

DIMENSIONS

  • Overall Length: 186 to 211 cm
  • Width: 55 or 63 cm
  • Height: 47 to 97 cm
  • Patient's Head Section - 45 cm long
  • Patient's Seat Section - 58 cm long
  • Patient's Foot Section - 63 cm long
  • Patient's Foot Extension Section - 18 cm long

THE PLINTH MEDICAL LIFETIME GUARANTEE

Plinth Medical are so confident in the quality of their products that they are pleased to offer a unique lifetime guarantee. No quibbles or false promises, simply if the frame of the couch ever fails Plinth Medical cover it. Likewise, as Plinth Medical use only the very best quality components, all the rest of the couch carries a 5 year unconditional guarantee. Only upholstery coverings are not covered unconditionally as Plinth Medical cannot control their use and care.

PLINTH MEDICAL UPHOLSTERY COLOURS

Jasmine
Battleship
Cobalt
Cocoa
Grape
Wine
Candy
Sapphire
Atlantic
Lupin
Denim
Cool Blue
Rainforest
Wasabi
Citrus Green
Marigold
Almond
Pillarbox
Gingersnap
Applemint

AFTER-SALES SERVICE

Our experienced service engineers fully support Plinth Medical Treatment Couches with annual service, medical safety testing, spare parts, repairs and re-upholstery.
