Plinth Medical 515 - 3 Section Manipulation Couch with Armrests

The Plinth Medical 3 Section manipulation couch, with armrests, model 515.

An extremely strong and versatile couch designed for various manipulation and mobilisation procedures. Featuring a twin-spine frame for additional strength, rigidity and long life. This model features a short head section with breathing hole and height-adjustable armrests designed to reduce tension and provide additional comfort for the patient during prone treatments. Both the head and foot sections provide positive and negative positioning.

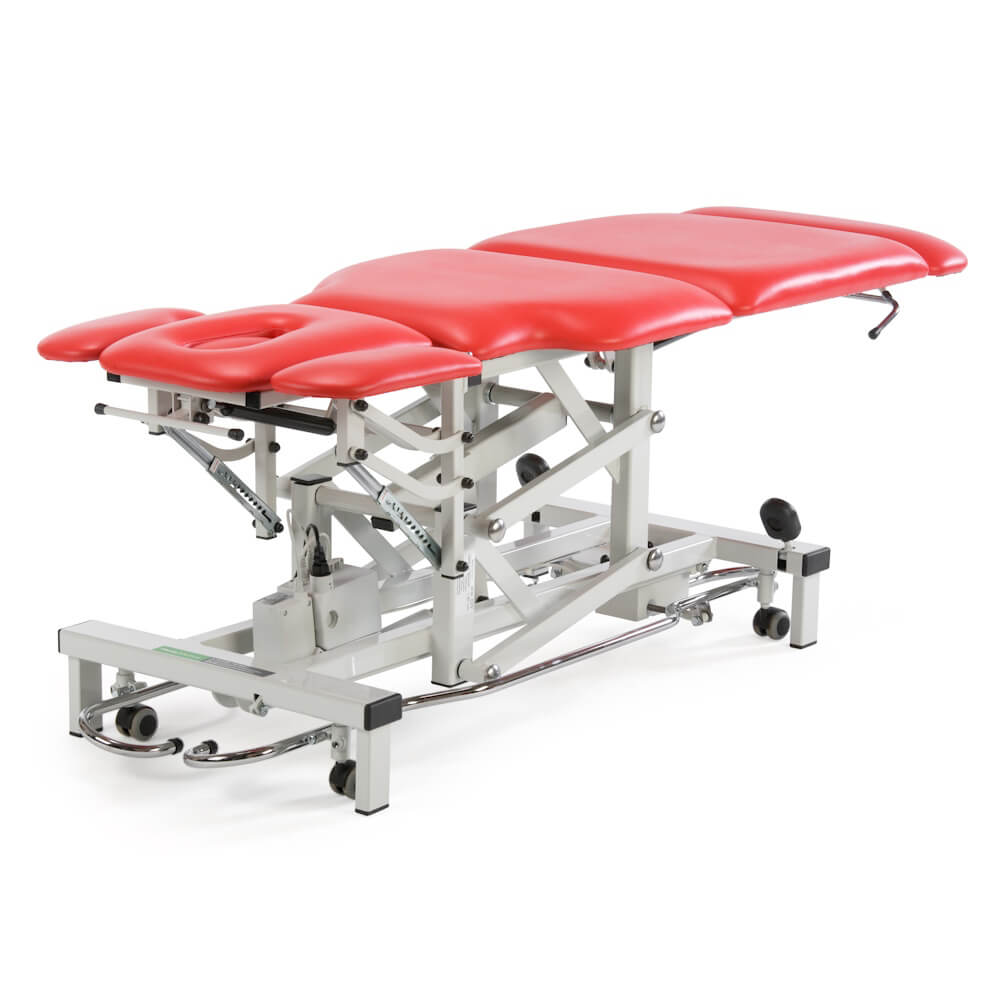

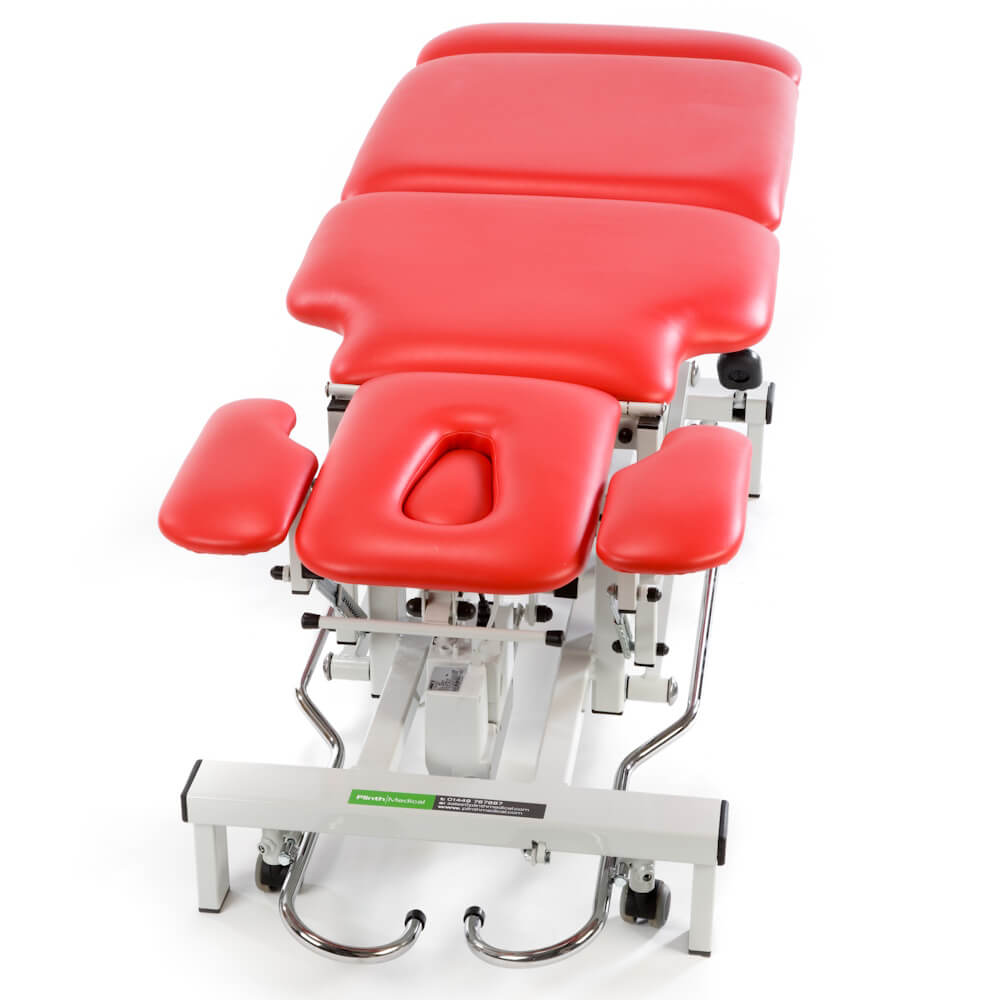

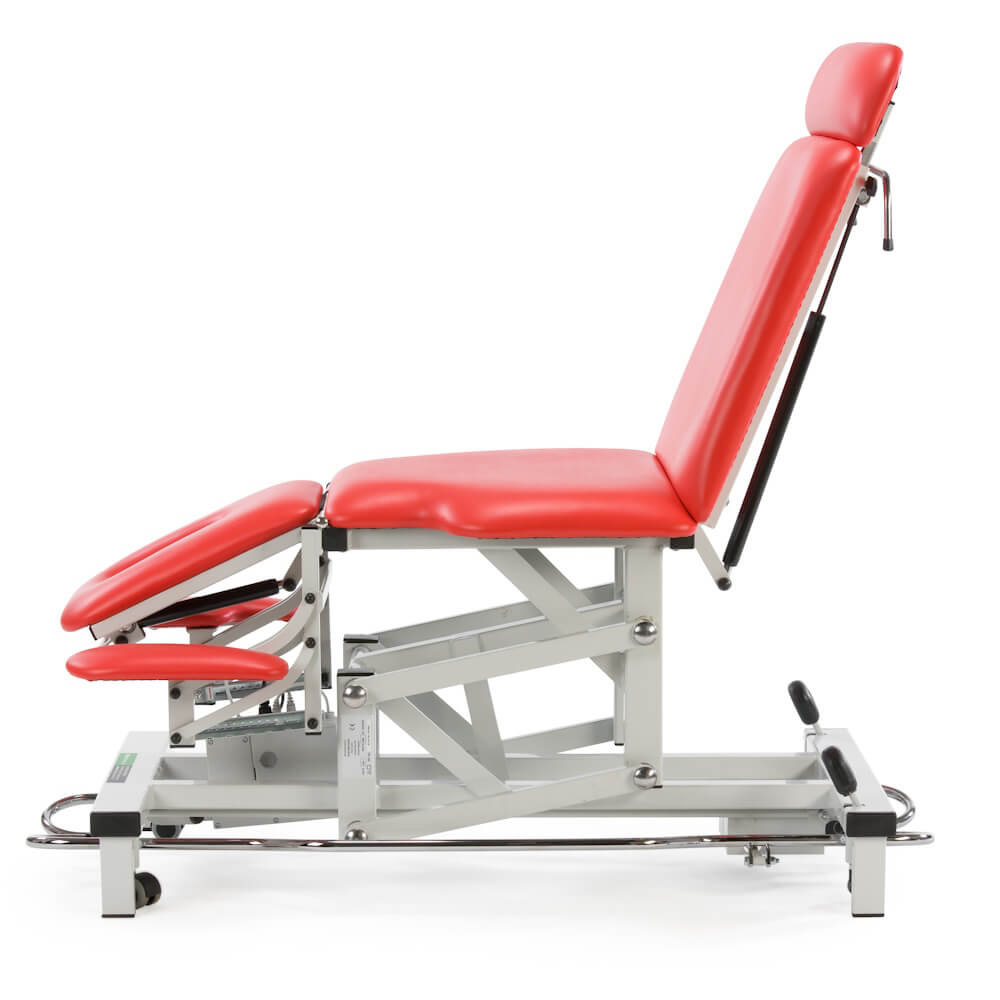

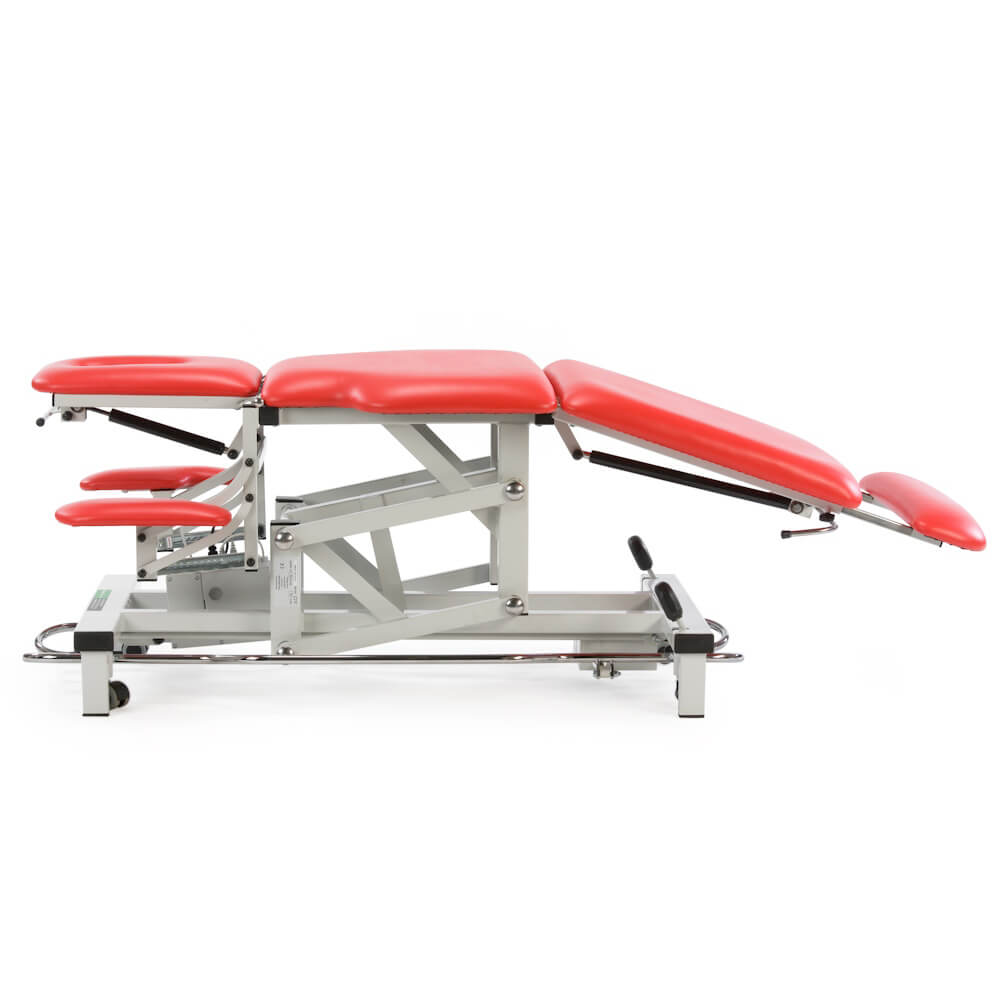

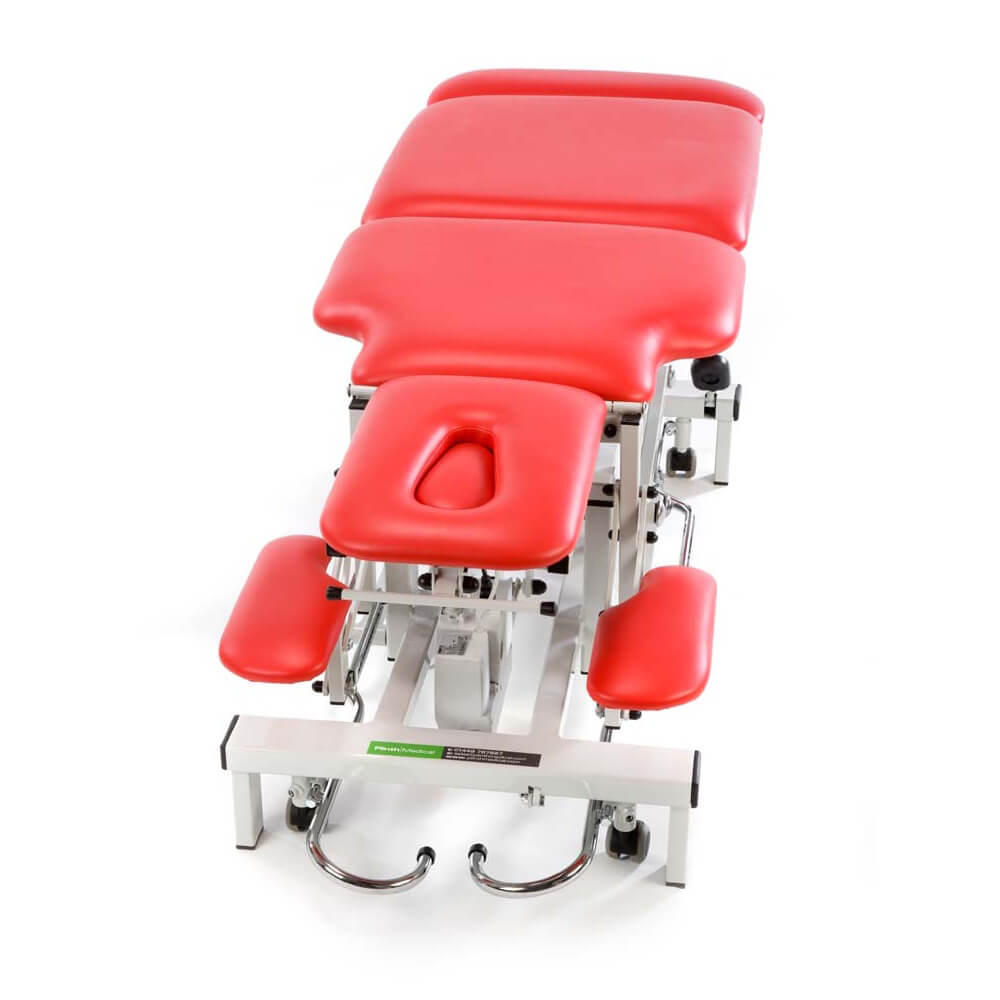

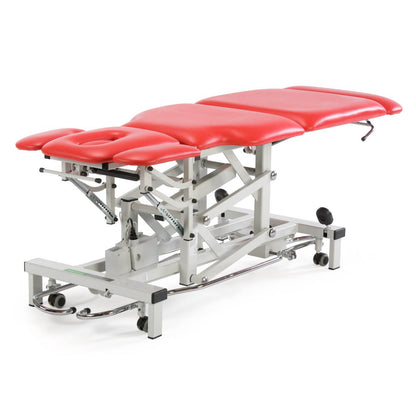

Images show the treatment couch with the optional Foot Ring Switch and the optional Foot Extension (please contact us for these options).

Please contact us for carriage charges for multiple couches, or for delivery to the the Isle of Man, Isle of Wight, Channel Islands, Ireland, Scottish Highlands and Scottish Islands.

When placing an order, we will contact you to arrange delivery - please leave a telephone number and email address at checkout.

UK Manufactured, with a lifetime frame guarantee and 5 year parts guarantee.

STANDARD SPECIFICATION

• Armrests lower 28 cm for prone treatments
• High-performance bearings on all pivot points
• Very strong & rigid frame
• Breathing hole and plug
• Either electric or hydraulic height adjustment available
• Able to lift up to 250kg from its lowest height
• Head & Foot Section adjustment by gas strut mechanism
• Short head section design provides optimal angular adjustment to position the patient for head and neck procedures such as cervical traction
• Foot section adjusts between -25° and +85° to support the patient in a sitting position
• Hoist clearance of 13cm (5”)
• Adjustable foot for uneven floors
• Fully washable/fire retardant vinyl available in a range of colours
• Couch goes horizontal for patient recovery in emergency situations
• Robust retractable castors for excellent mobility and safety
• CE marked in conformity with MDD 93/42/EEC Annex IX Class 1
• Electrical standard IEC601 part 1

DIMENSIONS

• Overall Length: 190 cm
• Width: 63 or 70 cm
• Height: 47 to 97 cm
• Patient's Head Section - 45 cm long
• Patient's Seat Section - 58 cm long
• Patient's Foot Section - 81 cm long

THE PLINTH MEDICAL LIFETIME GUARANTEE

Plinth Medical are so confident in the quality of their products that they are pleased to offer a unique lifetime guarantee. No quibbles or false promises, simply if the frame of the couch ever fails Plinth Medical cover it. Likewise, as Plinth Medical use only the very best quality components, all the rest of the couch carries a 5 year unconditional guarantee. Only upholstery coverings are not covered unconditionally as Plinth Medical cannot control their use and care.

PLINTH MEDICAL UPHOLSTERY COLOURS

AFTER-SALES SERVICE

Our experienced service engineers fully support Plinth Medical Treatment Couches with annual service, medical safety testing, spare parts, repairs and re-upholstery.
