Plinth Medical 513 - 3 Section Manipulation Couch

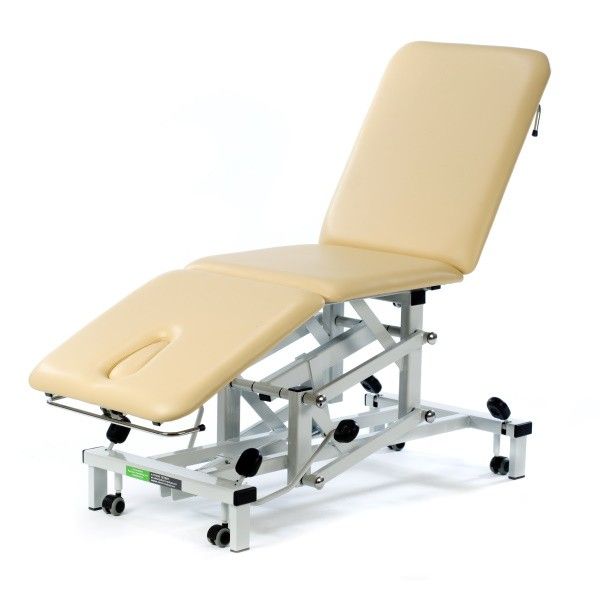

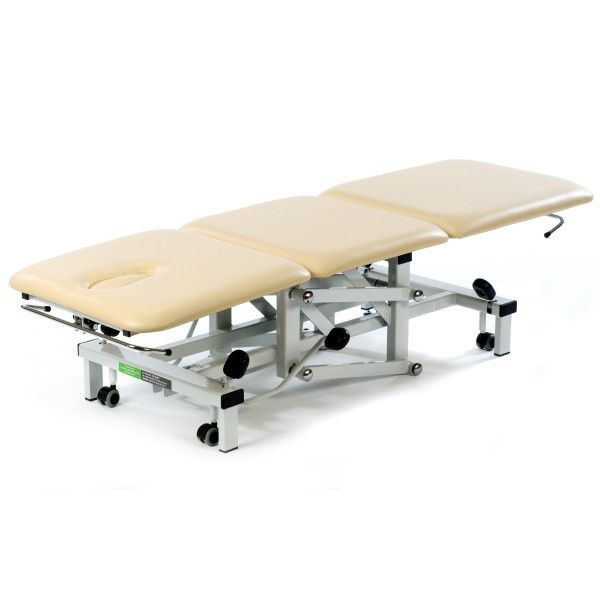

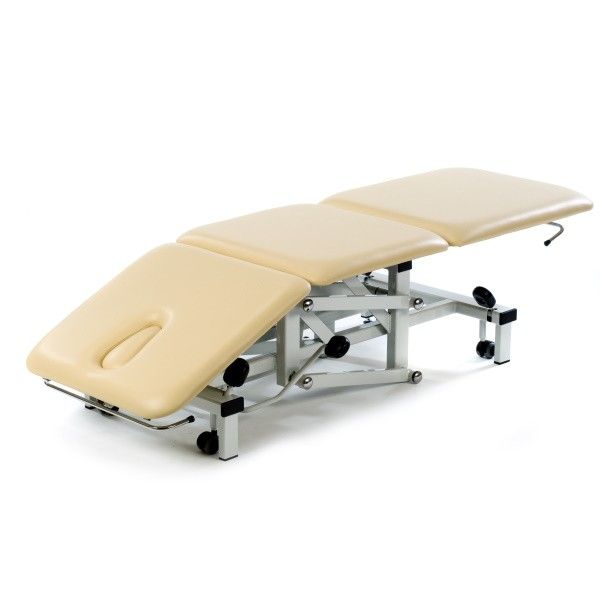

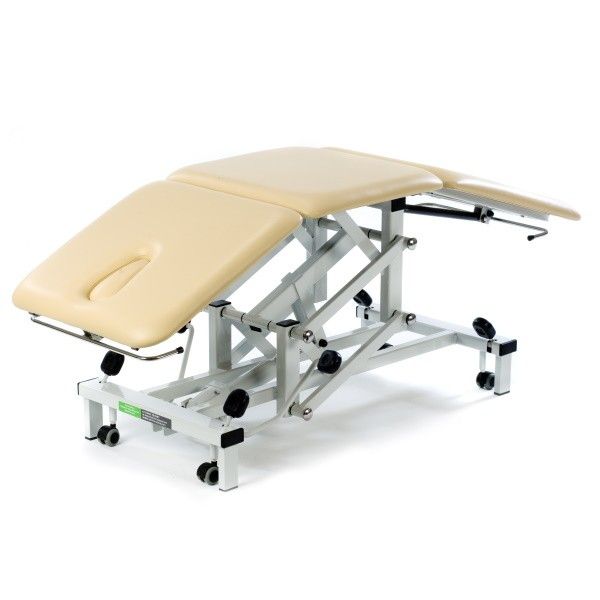

The Plinth Medical 3 Section manipulation couch, with standard head section, model 513.

A very strong and rigid couch designed for various manipulation and mobilisation procedures and techniques, this model features both positive and negative adjustment of the foot and head sections with breathing hole and plug included as standard.

Suitable for constant and heavy usage, this couch will last for many years providing a trouble-free long life with minimal maintenance required.

Please contact us for carriage charges for multiple couches, or for delivery to the the Isle of Man, Isle of Wight, Channel Islands, Ireland, Scottish Highlands and Scottish Islands.

When placing an order, we will contact you to arrange delivery - please leave a telephone number and email address at checkout.

UK Manufactured, with a lifetime frame guarantee and 5 year parts guarantee.

STANDARD SPECIFICATION

• High-performance bearings on all pivot points
• Very strong & rigid frame
• Breathing hole and plug
• Either electric or hydraulic height adjustment available
• Able to lift up to 250kg from its lowest height
• Head and Foot Section adjustment by gas strut mechanism
• Head Section angle adjustable from -25º to +80º
• Foot Section angle adjustable from -20º to +85º
• Hoist clearance of 13cm (5”)
• Adjustable foot for uneven floors
• Fully washable/fire retardant vinyl available in a range of colours
• Couch goes horizontal for patient recovery in emergency situations
• Robust retractable castors for excellent mobility and safety
• CE marked in conformity with MDD 93/42/EEC Annex IX Class 1
• Electrical standard IEC601 part 1

DIMENSIONS

• Overall Length: 200 cm
• Width: 63 or 70 cm
• Height: 47 to 97 cm
• Patient's Head Section - 70 cm long
• Patient's Seat Section - 58 cm long
• Patient's Foot Section - 70 cm long

THE PLINTH MEDICAL LIFETIME GUARANTEE

Plinth Medical are so confident in the quality of their products that they are pleased to offer a unique lifetime guarantee. No quibbles or false promises, simply if the frame of the couch ever fails Plinth Medical cover it. Likewise, as Plinth Medical use only the very best quality components, all the rest of the couch carries a 5 year unconditional guarantee. Only upholstery coverings are not covered unconditionally as Plinth Medical cannot control their use and care.

PLINTH MEDICAL UPHOLSTERY COLOURS

AFTER-SALES SERVICE

Our experienced service engineers fully support Plinth Medical Treatment Couches with annual service, medical safety testing, spare parts, repairs and re-upholstery.
