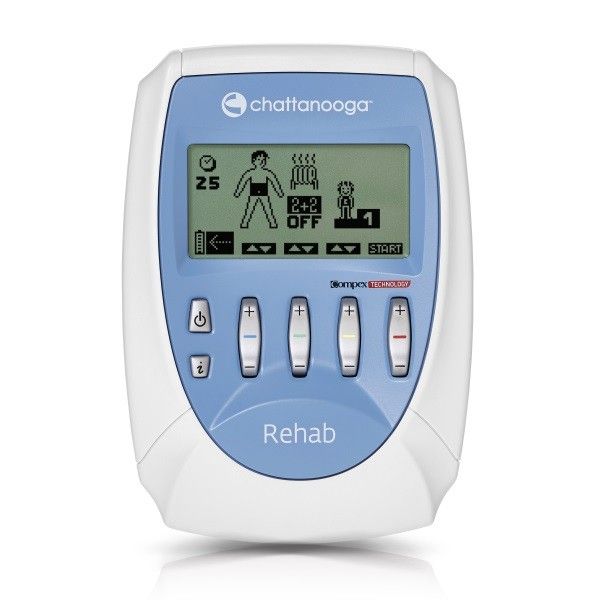

Chattanooga Rehab

Chattanooga Rehab, with Compex technology, is a 4 channel stimulator developed for Physiotherapists and Rehab Clinics that require a standard option of electro-stimulation.

Rehab meets all of the requirements a professional demands; pain management, treatment of vascular diseases, and muscle stimulation with basic programs.

FEATURES

• Four standard program categories: Rehabilitation I, Pain Relief I, Vascular and Conditioning I.
• Mi-Ready (integrated Muscle Intelligence™ Technology on all 4 channels, Mi-Cable not included).
• 2+2 Functionality: Choose one program for channel 1 and 2, and then select another program from the 2+2 program list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.
• Motor Point Pen included: This very useful tool in combination with the dedicated program helps to ensure the optimal electrode placement.
• Programmability: Create and personalise programs in order to customise the patient specific parameters.
• Detailed Practical Guide: Guidelines and treatment recommendations as well as technical parameters for all programs included in the stimulator are provided. The fold out cover includes illustrations of the suggested electrode placements.
• 3 Year Warranty

REHABILITATION PROGRAMMES

• Disuse Atrophy
• Prevention of Disuse Atrophy
• Reinforcement
• Muscle Lesion
• Motor Point

PAIN RELIEF PROGRAMMES

• Tens 100Hz Gate Control
• Frequency Modulated Tens
• Endorphinic
• Decontraction
• Pulse Width Modulated Tens
• Burst
• Burst/Tens Alternated

VASCULAR PROGRAMMES

• Venous Insufficiency 1
• Venous Insufficiency 2
• Arterial Insufficiency 1
• Arterial Insufficiency 2
• Capillarization
• Heavy Legs
• Cramp Prevention

CONDITIONING PROGRAMMES

• Resistance
• Strength
• Active Recovery

SPECIFICATIONS

• MDD: Class IIa
• IP class: IP22
• Applied part: Type BF
• Comply with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
• Battery: Nickel metal hydride (NiMH) rechargeable battery (4.8 V 2000 mA/h)
• Battery chargers: Only battery chargers bearing the part number 68301X can be used to recharge the battery
• Channels: Four independent and individually adjustable channels
• Pulse shape: Constant rectangular current with pulse compensation
• Maximum pulse intensity: 120 mA
• Pulse intensity increments: Manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA
• Pulse width: 30 to 400 μs
• Maximum electrical charge per pulse: 96 micro coulombs (2 × 48 μC, compensated)
• Standard pulse ramp-up time: 3 μs (20 %-80 % of maximum current)
• Pulse frequency: 1 to 150 Hz
• Dimensions: 138x95x33mm
• Weight: 300g battery included

STANDARD ACCESSORIES

• 1 Rehab device (1551000)
• 1 Fast charger (683010)
• 1 Battery pack (941213)
• 1 Set of 4 pin cables (601132)
• 1 Snap adapter kit (6111944)
• 1 Protecting cover (690001)
• 2 Bags of small electrodes (5X5 cm 1 snap connection) (42204)
• 2 Bags of large electrodes (5X10 cm 2 snap connections) (42203)
• 1 User manual and practical guide on CD/USB (13-8870)
• 1 Quick start guide + warning leaflet (885932)
• 1 Electrode placement leaflet (4526645)
• 1 Bottle of gel (602047)
• 1 Motor point pen (980020)
• 1 Transportation pouch (680055)
• 1 Belt clip (949000)
